Intelligent Traffic Light System for Hong Kong Traffic Network

Yui Chung FUNG, Chun Yung SO, Yuen Ho LAM


ProgrammeBachelor of Computing with Honours in Internet Technology
SupervisorProf. Vanessa NG
AreasIntelligent Applications
Year of Completion2019
Award16th IEEE(HK) Computational Intelligence Chapter FYP Competition First Runners-Up

Objectives

In Hong Kong, the increasing number of vehicles and population has caused high usage of roads, which has been a major concern. The aim of this project is to implement the Intelligent Traffic Light System (ITLS) with machine learning, which increases the efficiency of the road space usage.

The project has also defined a number of sub-objectives as follows:

  • Collect data of road usage.
  • Design and develop a system to detect the number of vehicles and pedestrians with computer vision.
  • Analyze data to find out the usage pattern.
  • Design and develop an algorithm for the intelligent traffic light control system.
  • Develop a 2D simulation model of intelligent traffic light control system based on the above.
  • Evaluate the new system against current traffic system.

Video Demonstration

Background and Methodology

TensorFlow

TensorFlow is a machine learning open source framework, which provides a variety of machine learning function to the system.

Pygame

Pygame is a free and open source python programming language library for making multimedia applications like games built on top of the excellent SDL library.

Record traffic condition videos

System Design and Implementation

Record traffic condition videos

Cameras will be set at vantage points in bridges. The resulting footage will then be used as the input of the object detection application.

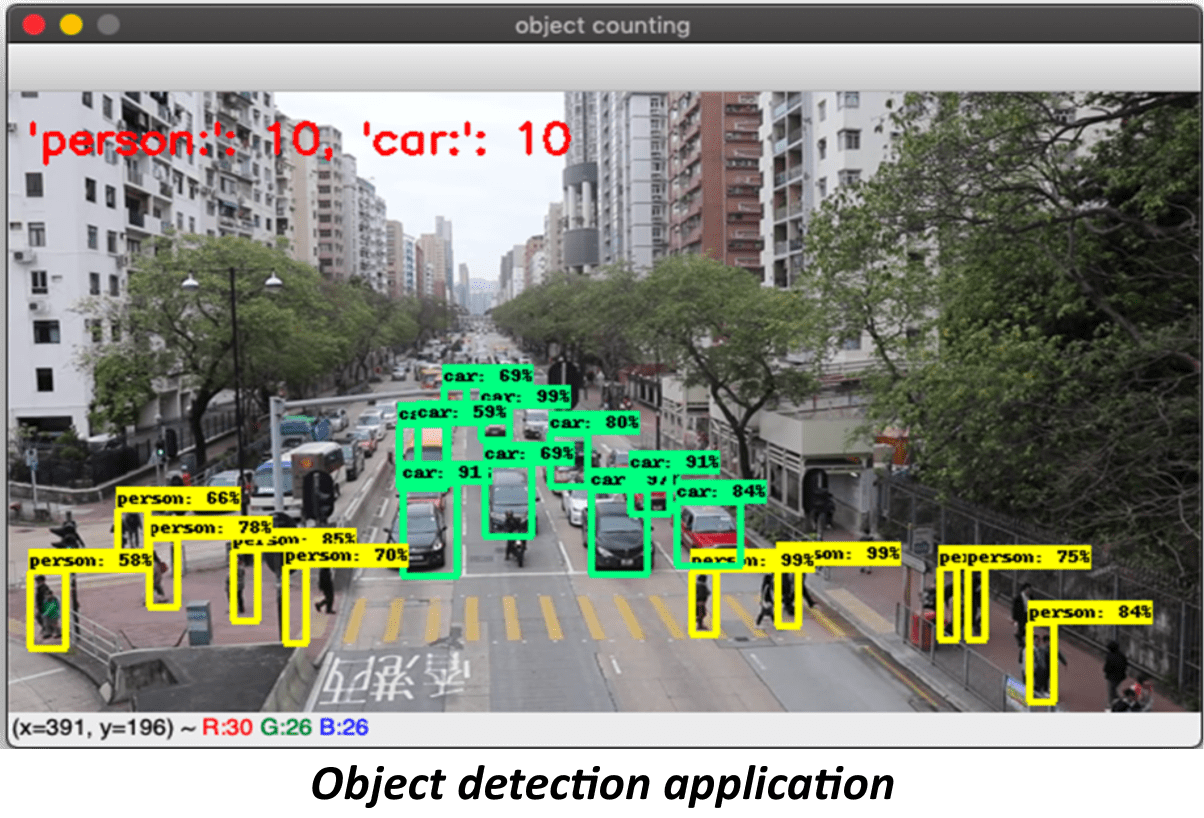

Object detection application

The object detection application tells users the object type (vehicle or person) in the road and show the number of vehicles and pedestrians at the road intersection per hour.

Intelligent Traffic Light Traffic Model

This traffic model will simulate road result which implements ITLS, and also include the realistic feature of the fixed cycle traffic light traffic model.

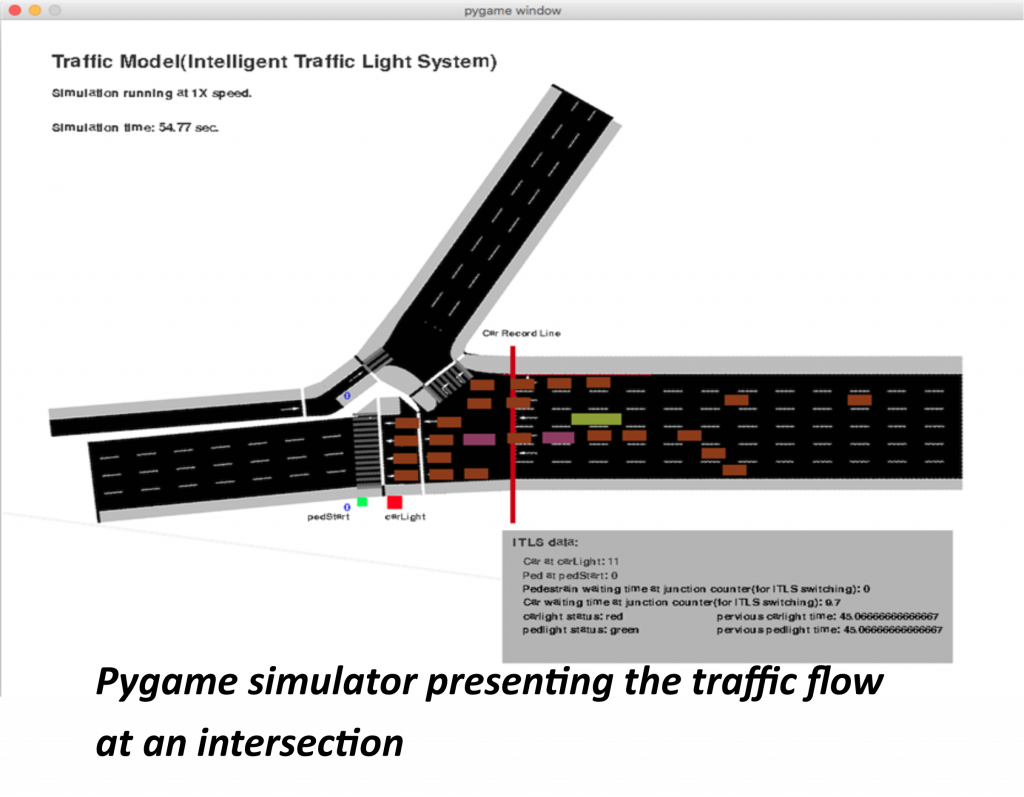

Simulation

The pygame simulation will simulate the traffic models visually. It will use the data of traffic models to build a simulation that visualizes the concept of the system.

System Design and Implementation

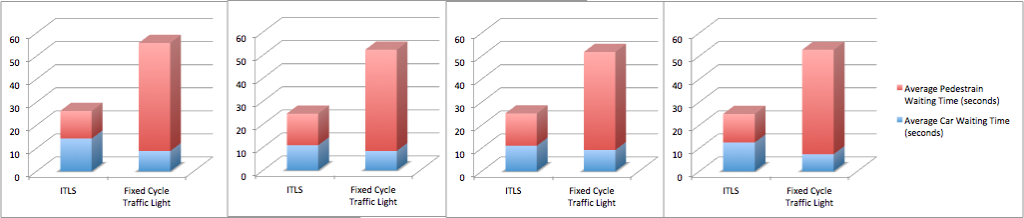

Simulation result on normal traffic hours

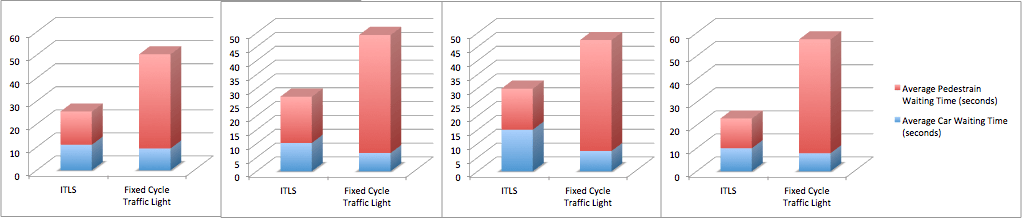

Simulation result on peak traffic hours


The red part is the average pedestrian waiting time in seconds, and the blue part is the average car waiting time in seconds.

The above figures show that the average waiting time of ITLS was a lot lower than the fixed cycle traffic light system about 50% to 55%, showing that ITLS served well at normal and peak hours.
