Automating First-screening Interview: Conversation with Chatbot and Report Generation

Shum Ka Ming, Cheng Wong Kwan, Wong Ka Ho, Tin Wai Ming

ProgrammeBachelor of Computing with Honours in Internet Technology
Bachelor of Science with Honours in Computer Science
SupervisorProf. Andrew Lui
AreasIntelligent Applications
Year of Completion2022

Objectives

Project Aim

The aim of this project is to achieve interview automation through developing a mobile application coupled with an interview chatbot for HR interviewing first-round interview in a time-efficient and less-resourced approach

Project Objectives

To achieve the aim, the project has defined a number of sub-objectives as follow:

  • Collect text data from the internet that contains a wide variety of question-and-answer patterns and information of related topics for the decision of follow-up questions that is selected by machine learning model.
  • Research an NLP tool to extract information from the users’ speech and resume (PDF) for generating potential questions to be asked in interview
  • Design the routine of the interview conversation
  • Develop a chatbot for hosting interview.
  • Develop a prototype mobile application for handling the voice-based communication and as a client of chatbot
  • Develop a prototype web application system for organizing interviewees information and report in database
  • Implement the chatbot, mobile application and web application as a prototype system
  • Evaluate the system and analyze the result

Videos

Demonstration Video

Presentation Video

Methodologies and Technologies used

The supporting technologies that are helpful to this project include the following technologies.

  • Database: MongoDB, Google Cloud Storage, Firebase
  • Mobile Application Development: Android Studio
  • Machine Learning Tools: Hugging Face transformers, scispaCy
  • Important technology
    • text-to-speech and speech-to-text: Google Cloud
    • resume parser: affinda api
    • data visualization: d3.js
  • Programming Languages: Node.js, Python, Java

In this project, we will need to build servers, a chatbot, and a mobile application.

A cloud platform allows us to deploy our servers and provide services with various benefits.

Databases allows us to store data and be accessed by our server or application.

An IDE allows us to develop our mobile application for the project.

To build a chatbot for interviewing in a voice-based approach. We will need to adopt a conversational agent that delivers and responds in audio. Speech-To-Text and Text-To Speech techniques are required. Also, machine learning tools for classification is needed to process answer text.

For programming languages, Node.js can be used in writing servers, Python can be used in the development of the chatbot, and Java can be used in mobile Android application development.

Architecture or High-Level System Design

Major Components are Android Client, the Server for machine learning and NLP and databases.

An interviewee will be using the Android Client for interviewing and receiving questions from the server and sending answers to the server. The server will process the interviewee’s resume for generating questions, receive answers from an interviewee and update database data after processing the answer. During the interview, the android client will take photos of the interviewee as evidence of the real applicant. After the interview, the server will generate a report stored in the database.

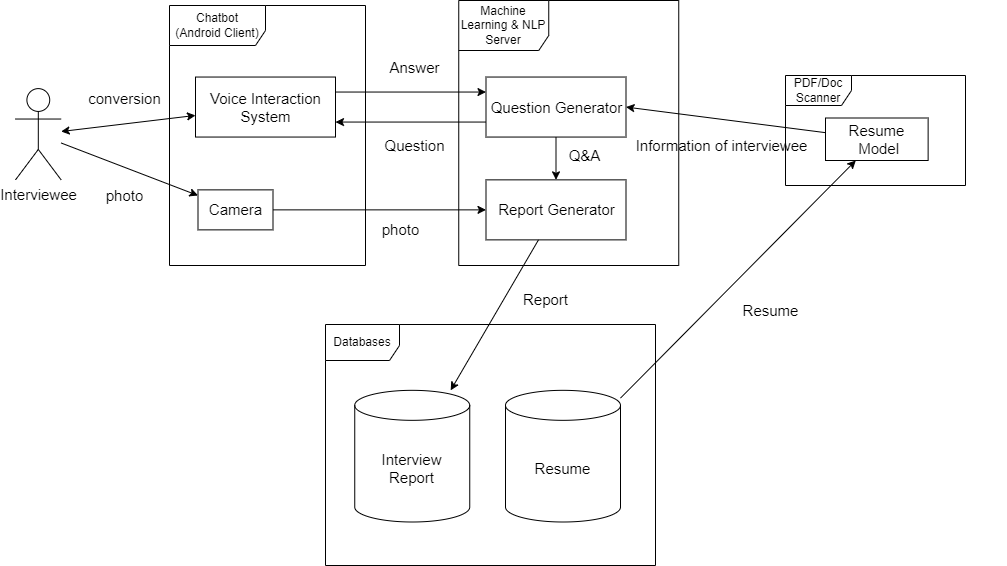

Figure 1: Components of the system

There are 5 stages in the first-screening interview which will be focusing on this project.

            The first stage requires an interviewee’s resume and generates a token for authentication.

            The second stage describes the process of question generation.

            The third stage is the flow of validation. How the interviewee receives the token and how to track the real applicant.

            The fourth stage is the interview process. Mainly conducting Q&A conversations for times. Interviewees will read their answer as an input to the chatbot. A report will be generated after the interview. Photos of the interviewee will be taken occasionally and stored for post-interview review.

            The fifth stage is the output stage after the interview. HR could read the reports with filter options provided.

            Stage 6 and 7 are second-screening and third-screening where interviewees selected by the HR might attend.

Figure 2: Information flow and interview model

Evaluation

Evaluation Design

Our user evaluation is inviting some people as interviewees to use our chatbot and mobile application. We will be reviewing the report generated after the interview. The evaluation procedures are as follows.

    • Collect user resume
      • Extract resume content via a resume parser and store the data into database
    • Observe users’ performance during the interview
    • Invite users to complete a user survey after using our application and chatbot.
    • Analyze and conclude our observations and survey results.
Observation Result

We have discovered several issues during the user evaluation.

First, users were confused when using the application. They started the interview without reading the instruction. Users responded directly after the chatbot without using the buttons for recording audio at first. Users got lost when the interview was started, they did not know what to respond.

Second, there were some recording issues and unsuccessful speech recognition. Since we conducted the user testing online. Recording quality is highly correlated to the interviewee’s recording equipment. Bad audio quality caused the failure of speech recognition and classification. Also, users’ accent and poor articulation may cause unsuccessful speech recognition.

Third, there were some issues of chatbot. The chatbot sometimes could not classify the label of “repeat” and “not sure” and could not understand a topic in further. Also, the response time of the chatbot is long due to lengthy operations such as Google text-to-speech, speech-to-text, zero-shot classification, and uploading the file.

Lastly, we observed that users tend to respond in short instead of long sentences when talking to the chatbot. We have concluded few possible reasons of it. First, interviewees did not know the capability of the chatbot on handling audio. So, they were not sure how much they should talk. Second, they had no experience of chatbot interview, so they were not used to speaking to a chatbot. Hence, they could not anticipate how the conversation would go and did not perform normally as in-person interview. Another reason might be that they try to interact with the chatbot as interacting with AI assistant. Therefore, they tried to answer questions concisely sometimes.

User Survey Result

In our user survey. We have asked the following questions. Some are the common questions; some questions are only asked to users who have experience in using chatbot for interview.

Most of our users have never been interviewed by a chatbot.

In both situation of before or after using the chatbot, most of the users did not feel boring, nervous, or difficult. They think chatbot interview is time efficient, work efficient, and effective. One of the users felt nervous when using the chatbot.

About the functionality of the chatbot, our users agree that the voice from the chatbot is clear, the user interface works well.

However, some of the users think that the chatbot cannot hear their answer clearly, the chatbot cannot understand their answers. Also, they think the chatbot does not response promptly.

For the design of the interview, our users think the follow-up questions is asked reasonably.

According to one example of our survey results. One of the users have used other interview chatbot before, but that chatbot does not provide follow-up question based on interviewee’s answer which our does. Also, that user consider our chatbot is a more capable than the chatbot he used before.

Lastly, our users would like to have chatbot interviews in the future and agree that chatbot interview will be a trend.

User Survey Questions
Interviewed by chatbot beforeNever interviewed by chatbot
[common]

1. Have you ever been interviewed by a chatbot?
[used before]

1. How many times have you been interviewed by chatbots?
[common]

2. What are your first impressions of chatbot interviews? (before)

3. What was your impression after the chatbot interview?

4. Please rate the functionality of the interview chatbot.

5. Any other problems/impressive features?
[used before]

2. Which features of the interview chatbot you used before are included. (Not including this chatbot)

3. Compare to the chatbot you used before, please rate the functionality of the interview chatbot.
[common]

6. After this experience, what type of interviews would you like to have in the future.

7. Do you think interview chatbots will be a trend in the future?

8. Any comment or suggestion.

Table: User Survey Questions

Conclusion

Interview automation has been accomplished successfully and demonstrated in this project. The aim and objectives of this project have been satisfied. Despite first-screening interview can be automated and chatbot could play a role of an interviewer, we do not try to explore the replacement of human interviewer or claim all interviews can be automated using a chatbot.

In automating interview, we have developed a chatbot and a server for hosting the interview, an android application as a client of the chatbot server. Besides, we have developed a web application for collecting resume information and visualizing collected data for reviewing. All developed programs are integrated as a prototype system which could function properly and carry out the interview in an automated and voice-based approach.

Though our prototype system contains limitations, we believe the system can surely demonstrate the idea of automated chatbot interview and suggest the structure of applying chatbot in interview.

Future Development

For collecting interviewee resume and data. A more powerful tool might be used. Alternatively, an online resume form could be provided to interviewees. As the form could be designed in any structure to collect required information and regulate the result to ensure consistency.

For the classification model, we may train the model in further based on the original model to attain a better performance in understanding interviewees. In the chatbot, there is a function for summarizing answer text if the text is long. However, according to our observations, users tend to answer in short sentences instead of lots of words. The summarization function might be useful in some cases but remains unused in most of the time. So summarizing techniques could be adopted when long response is expected.

In using the mobile application, a better user guide or tutorial for interviewee could help in better user interaction.

In practice, we might want the chatbot could handle concurrent access so more interviews can be conducted at the same time. If the interview is conducted in a company, appropriate equipment including headphone, microphone with good quality, and tranquil environment for recording might be provided by the company to ensure the recording quality to avoid speech recognition problem. The chatbot model could be modified to suit different types of interviews of various aspects or job types.
