Augmented Reality Gift-box DIY System SOSGift

Ma Man Wai Celia

ProgrammeBachelor of Science with Honours in Internet Technology
SupervisorMr. Kevin Tse
AreasVirtual Reality and Augmented Reality Applications
Year of Completion2016

Objectives

This project aims to provide a convenient, efficient and well-described utility for users to create gift-box in order to enhance the making process experience with augmented reality technology (AR). Because the lack of utility for the whole process, this utility aims to provide service from gift-box selection to final product creation which is convenient. When people DIY the gift-box, they need to draw the paper pattern. If the size is not perfect, they go back and draw the pattern one more time which is totally wasting time. This utility aims to reduce the overall time of DIY gift-box especially in the size-measurement part in order to achieve efficiency. Some existing tutorials of DIY gift-box are complicated and unclear. This utility also aims to provide well-described tutorials for user with assist with AR.

To achieve the aims, the below systems will be created:

  • Develop a user system
  • Create gift-boxes selection catalog
  • Develop an AR size-measurement system
  • Develop a web printing system
  • Develop a virtual tutorial stage
  • Create some 3D-models demonstrate the completed product
  • Develop a user-friendly GUI Views

Background and Methodology

SOSGift consists of two app including the Android app and web app. Those 2 app works interactively to finish the whole DIY process. After selecting a gift-box in the gift-box catalog, the detail page of the gift-box will be shown. In the above figure, the e pictures gallery. By pressing the picture, a bigger one will be shown so that users can watch it clearly. Annotation 2 area is 3D step-by-step tutorial button of the box. Virtual tutorial state will be shown by pressing it. Annotation 3 area is the AR size-measurement system which is explained in below section.

Users can download and print this marker from the web app in A4 size. This marker is specially designed for more stable performance of the GameObject (the virtual gift-box). The different color, edge and border used in the marker makes the virtual gift-box becoming stable and not vibrate.

By pressing “Measure size” button, an AR screen will be shown:

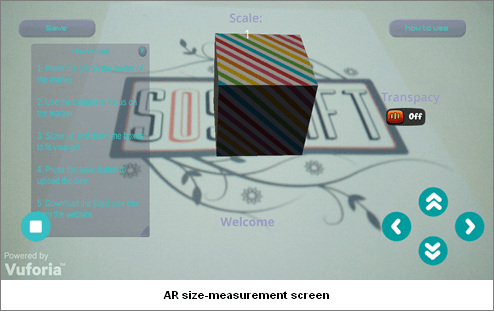

Above figure shows the AR size-measurement screen. The left-hand size is the how to use panel. It gives instruction to users about how to use this function. User can close it by pressing the top-right corner button or the cross button in the window.

As long as the size of virtual gift-box is same as the size of gift-box in reality in the mobile screen, it can be confirmed that the virtual gift-box fitted the gift is identity to the gift-box in reality fitted the gift.

First, the box in scale one is made out. Measure the size of it and the width is 4.6cm.

And then a virtual rainbow box with width 4.6 cm was made. It is in scale 1.0. As long as the system follows the ratio and scale of this measurement, the scaling values can be calculated.

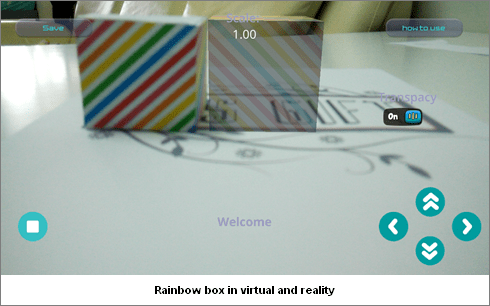

From the above figure, it shows that the size of rainbow box in reality and in virtual is nearly identical. The widths are both 4.6 cm. It proves that if the virtual gift-box can totally cover the gift, it means the gift-box in reality can also cover the gift perfectly. The size is determined in this way.

The animation is in 3D form and can be viewed on different sides. From the above figure, it is step 2. User can go into different steps as they wish. The 2 buttons in right hand size are the scales up and down button letting the 3D animation can be zoom in to see the detail much more clearly.

When user finish the tutorial the progress bar is 100% but they can also go back to the previous step in case they don’t understand the folding method. So, below is the finish product:

Evaluation

If the user can position the gift-box 3D model as they want, they can measure the gift size easily leading to speeding up the process. About 78% of users agree that they can accurately position the models.

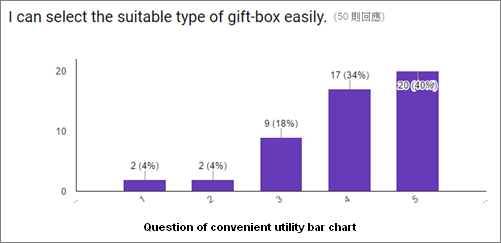

By asking questions on gift-box selection and the whole gift-box making process, the degree of convenient can be evaluated:

By asking questions on the tutorial, the degree of well-described can be evaluated:

If a user satisfies for the app, he or she will be more likely to use the app next time. 80% of users will use the app next time indicates that they are satisfied for the app.

Conclusion and Future Development

SOSGift is a gift-box making utility with Augmented Reality Technology. There are three aims that SOSGift wants to achieve that are convenient, efficient and well-described. The lack of utility for the whole gift-box DIY process leading to the first aim. It aims to provide service from gift-box selection to final product creation which is convenient. For the efficient, it aims to reduce the overall time in the DIY gift-box process including the size-measurement part, paper pattern creation part or others. Lastly, it aims to provide some well-described tutorials for users that are clear enough and easily understand.

In this development stage, SOSGift is not integrated with after-sale service system yet. SOSGift can cooperate with some companies to be their support of after-sale service. When customer buy a gift in the shop, they can use SOSGift to make the special designed gift-box with company logo. This can lead to value-add of the gift that can help those companies to increase user satisfaction.

In the future, SOSGift can be integrated into VR glasses too. In the size-measurement part, user can just scale up and down the virtual gift-box with finger motion. In the tutorial part, user can watch the 3D tutorial and can have both hands to make the gift-box concurrently. The user experience can be improved.

Copyright Ma Man Wai Celia and Kevin Tse 2016
