An Integrated and Realistic Online Classroom

Herbert Koon Hang CHAN, Ken Lap Kan WONG, Trance Tsz Long WONG

Programme Bachelor of Computing with Honours in Internet Technology
Supervisor Dr. Oliver AU
Areas E-Learning
Year of Completion 2019

Objectives

Nowadays, different kinds of online tutoring web applications have been designed. However, these tools are still not widely used by either traditional tutoring schools or private tutoring. We observed that these applications not included integrated function, lacked interaction between participants, lacked small-scale group tutoring, and also lacked classroom management. These applications also cannot simulate a real-life classroom atmosphere.



The aim of the project (RIOC – Realistic Interactive Online Classroom) is to develop a realistic and interactive online classroom by simulating the components and interaction of a traditional classroom.

To achieve the aim, the objective is to provide a number of classroom-related functions that simulate realistic classroom atmosphere and improve interaction between participants. They are integrated into an application.

The project has defined a number of sub-objectives as follows:

  • Define what an ideal online classroom is.
  • Design the classroom components such as adding students into classes, classroom ownership, shareable whiteboard function, 1-to-many video conferencing (webcam), drawer, and class management function.
  • Design interactive components such as whiteboard and video channel, grouping, drawer, and personal notebook.
  • Perform performance evaluation from the perspective of users.

Video Demonstration

Background and Methodology

Techniques and technologies used (Selected)

Elixir

Elixir is a functional and concurrent general-purpose programming language that runs on the Erlang virtual machine (BEAM).

React.js

ReactJS is used for building the user interface in our project. React.js ensures faster rendering for heavy loaded and higher performance. Also, it guarantees stable code.

Material UI

Material UI is selected for our library to develop a single underlying system that unifies the user experience across platforms, devices, and input methods. Also, it provides a flexible foundation for innovation and customization.

React Konva

Konva is an HTML5 Canvas JavaScript framework that operates high performance animations, transitions, node nesting, layering, filtering, caching, and event handling for desktop and mobile applications.

WebRTC

WebRTC (Web Real-Time Communications) is used for exchanging video and audio streams between different users.

System Design and Implementation

Figure 1: System architecture

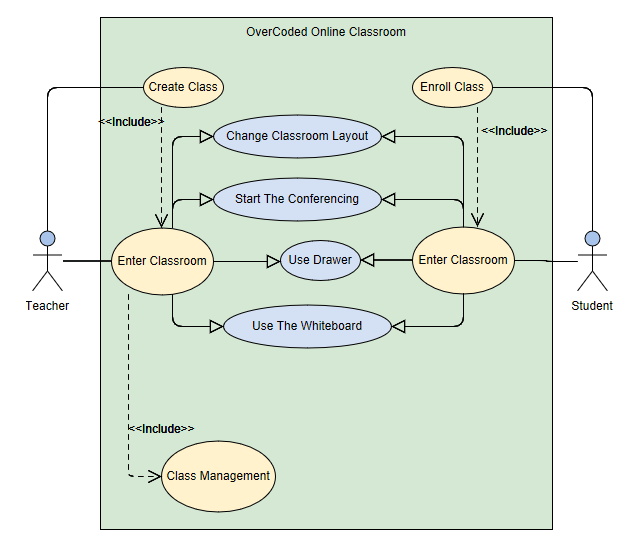

Figure 2: Use case Diagram of OverCoded's Online Classroom

Figure 3: Login page

Figure 4: Class list

Figure 5: A teaching schedule and student whiteboard.

Figure 6: Uploading teaching materials with mobile phones

Figure 7: Distributing materials to students

Evaluation

Table 1 shows the comparison between our web application and existing solutions including Skype, Discord, Mytutor, and Google Classroom. Most of the respondents agreed that in terms of convenience and performance, our application was more preferable than other four alternatives. However, some respondents mentioned that our application was not smooth enough while they were using notebook to perform the testing.

Table 1: Scores indicating whether OverCoded's RIOC is more preferable and more convenient than the alternatives

Figure 8: Would you prefer to use OverCoded's RIOC?

Figure 9: Would you recommend this application to others?

It was clear that the majority of respondents would like to use our application as their online classroom and recommend this application to others.

Conclusion and Future Development

For the future development of our application, three main functions need to be improved and added. They are more class activity functions, providing screen sharing function, and improving whiteboard and drawer features.

The functions of creating quiz and group discussion and of group gaming can be included in order to simulate a realistic classroom atmosphere and enhance students' engagement during the lesson.

Also, to improve the video communication efficiency, the system can provide Screen Sharing service. Users will broadcast their screen instead of images in real time.

Besides, for the drawer and whiteboard function, apart from only supporting the formats of images, the view function in our application should support files with different extensions, such as .xlsx (excel), .docx (word), and .pdf (pdf). In addition to the view function, for PDF file format, we should support 'dragging and dropping' and 'drawing and highlighting' in the whiteboard.
