The aim of this project is to design and implement a program comparator. This comparator can be used to detect plagiarism and mark programs for assignments. A system is developed in this project for the evaluation of the comparator.
To achieve the aim, the project has defined a number of objectives as follows:
Programming assignments are usually considered as the major assessment component of a programming course. Since the programming assignments are usually done using computers, it is very easy for students to copy the source code from each other. Plagiarism in programming has been a serious problem within the years. Also, students may submit their assignments after the due date, so the teacher may have to mark the assignments over a long period of time. They may forget similar scripts they marked before. Moreover, a programming class usually contains a large number of students. So it is very difficult for teachers to find out similar pairs of programs from a large set of programs. Due to the serious problem of plagiarism in programming courses, the main focus of this project is to design and implement a program comparator to detect plagiarism.
Also it is time consuming for the teacher to mark the assignments one by one manually in a large set of programs. As the teacher only needs to check the program with the model answer for most programs, the program comparator can be implement for automatic marking. Most previous program comparing algorithms compare either syntax or semantic only, this is not accurate enough for program comparison. Therefore, an efficient and accurate program comparing tool comparing both syntax and semantic is highly demanded.
The marking of programming assignments involve two processes, accurate plagiarism detection and effective marking of the assignments. This project focuses on the analysis excising program comparing methods and how students carried out plagiarism in order to develop an accurate plagiarism detection tool. Marking of the assignments is a time consuming job. So this project also analyses existing auto marking methods and develop an effective automatic marking tool.
Metric-based is an earlier approach. This is also called attribute-counting-metric since it compares the frequency of keywords between pairs of programs. Different systems use different metrics. For example, the following are some of the metrics used by the Faidhi-Robinson System (Faidhi and Robinson, 1987), number of program statements, repetitive statement percentage, conditional statement percentage, number of modules, module contribution percentage (the number of code lines inside procedures, count of unique identifiers, average spaces percentage per line, average identifier length.
Later on, a more accurate and reliable approach structural-based comparison is developed. The programs are parsed and transformed to token streams. The following shows an example of Java source text and corresponding tokens:
| Java Source Code | Generated Tokens |
|---|---|
| public class Count{ | BEGINCLASS |
| public static void main(String [] args) | VARDEF,BEGINMETHOD |
| throws java.io.IOException{ | VARDEF,ASSIGN |
| int count = 0 ; | VARDEF,ASSIGN |
| while(System.in.read() != -1) | APPLY,BEGINWHILE |
| count ++; | ASSIGN,ENDWHILE |
| System.out.println(count+” chars.”); | APPLY |
| } | ENDMETHOD |
| } | ENDCLASS |
Tree-based comparing approach is chosen because it can compare both the structure and the content of the programs. Each program is transformed into a parse tree with nodes and tokens. Then, a program comparator is developed. It compares the trees in pairs and produces a similarity score for each pair.
After the comparator is developed, it is applied as a plagiarism detection tool. A threshold rate is defined. If the similarity rate of a pair of programs is higher than the threshold rate, the pair is considered as plagiarized programs. The comparator can also be applied as an automatic marking tool. The more similar they are, the higher the score of the program. An online assignment management system is developed to evaluate the comparator. The system includes managing assignments, checking plagiarism and marking assignments. An example of a simple parse tree is shown below:
The following shows an example of the hierarchy of a parse tree:
There are four components in this system. They include assignment submission, plagiarism detection, automatic marking and assignment management. Only teachers can access the plagiarism detection and automatic marking sub-system. The following shows the system component diagram:
The system is a web-based online system that provides an easy and comfortable interface for students and teachers to open and submit programming assignments. Teachers can open new assignment submission and upload model answers, and then students can submit their assignments. All the files submitted and the assignment information is sent to the database. Apache Commons FileUpload Java libraries (The Apache Software Foundation) and Apache Commons IO Java libraries (The Apache Software Foundation) are added to the system to help upload submitted files to the database. The main interfaces of the system are shown below:
A program comparator for comparing the parse trees is developed. The comparator receives a set of parse trees and compares a pair of parse trees each time. The trees generated are complicated so they are broken down into sub-trees when comparing. Each sub-tree represents a sub-part of the program, which represents a package, an import, a class or an interface, a constructor, a field, a method, an expression, or a statement. The comparator uses depth-first approach to compare two sub-trees. It compares the nodes and the tokens in the two sub-trees and different similarity score is returned according to different conditions. Then, a sub-total similarity rate is calculated using breath-first approach for each sub-tree. The final similarity score of the pair of programs is the total scores for all sub-trees. Some extensions have also been added to the comparator to suit the conditions that should considered as similar.
The following shows an example of detected exact copy and the similar rate is 100%:

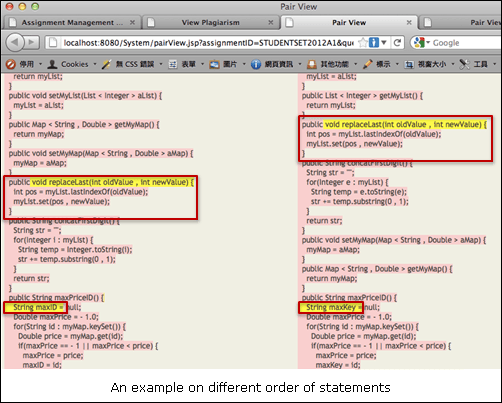

The comparator can also match different identifier name, and statements or methods in different order. The details is shown below:
In addition, statements with similar structure can also be matched, and the rate is high as shown below:

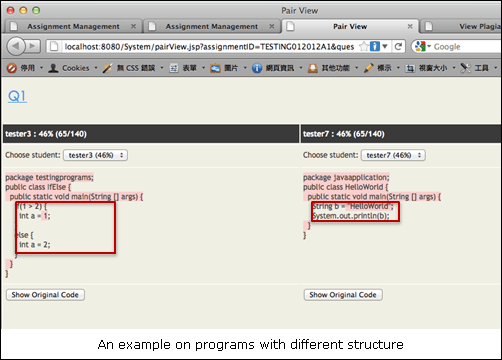

Different structures should have different nodes, since the nodes are different, the returned ratio should be relatively low. The following shows an example of programs with different structure:
The following shows some simple programs for comparison:
| File | Description |
|---|---|
| HelloWorld.java | Contains a main function which assigns “HelloWorld” to a string “a” and prints a. |
| HelloWorld2.java | Contains a main function which assigns “HelloWorld” to a string “b” and prints b. |
| IfElse.java | Contains a main function with a simple if-else statement |
| IfElseCopy.java | A copy of IfElse.java |
| WhileLoop.java | Contains a main function with a simple while loop and the program function is same as ForLoop.java |
| ForLoop.java | Contains a main function with a simple for loop and the program function is same as WhileLoop.java |
The comparing results are shown below:
| Compared File | Compared File Description | Metric-based | Structure-based | JPlag | Tree-based |
|---|---|---|---|---|---|
| IfElse.java | Same structure and same content | 100% | 100% | 100% | 100% |
| IfElseCopy.java | |||||
| HelloWorld.java | Same content but different variable | 100% | 100% | 100% | 97% |
| HelloWorld2.java | |||||
| ForLoop.java | Similar structure and similar content | 100% | 80% | 10% | 100% |
| WhileLoop.java | |||||
| IfElse.java | Different structure and different content | 66% | 75% | 10% | 46% |
| HelloWorld.java |
The results for tree-based are more reasonable. The programs of the first pair are exactly the same, so their similar rate should be 100%. The programs of the second pair has different variable name, so the rate should be high (97%) but not as high as 100% as they are not exactly the same. The programs of the third pair have similar content and similar structure, so the rate should be high (100%). The programs of the forth pair has totally different structure and content, so the rate should be low (46%). As a result, the comparator based on tree-based approach works.
Other than accuracy, efficiency is also a concern. A few set of programs are tested and the time taken is measured. From the result, the time taken for plagiarism detection in our system is acceptable. The result is shown below:
| Set | Number of successful parsed files | Average Number of lines | Time Taken for Plagiarism Detection |
|---|---|---|---|
| 1 | 73 | 38 | 2:30 min |
| 2 | 60 | 31 | 1:30 min |
| 3 | 64 | 53 | 2:00 min |
Teachers and schoolmates have been invited to try the system and conduct a questionnaire for system evaluation. The goal of the evaluation is to measure the objective and subjective value of the system. So the main focus is on the accuracy, efficiency, functionality, and usability of the four sub-systems. Five teachers and Five students are invited. Since students won't be able to use the plagiarism detection and automatic marking system, they do not need to rate on accuracy and efficiency. For the close-option questions, 5 rating options is provided from 1 to 5, which indicates from very bad, bad, acceptable, good and very good. The overall comments and ratings are good. The result is shown below:
| Accuracy | Efficiency | Functionality | Usability | |
|---|---|---|---|---|
| Tutor | ||||
| Plagiarism Detection | 3.8 | 3.6 | 3.8 | 4.2 |
| Automatic Marking | 3.8 | 3.6 | 3.6 | 3.6 |
| Student | ||||
| Assignment Submission | – | – | 4.0 | 4.2 |
| Assignment Management | – | – | 4.2 | 4.2 |
In this project, different approaches on program comparing, plagiarism detection and automatic marking are reviewed in the background. According to the analysis, tree-based comparison is chosen for higher accuracy since it compares both the structure and the contents of the programs. A tree-based program comparator is designed and implemented as a plagiarism detection tool in an online assignment management system. Other than plagiarism detection, the comparator is also implemented as an automatic marking tool since the previous common approach is not applicable in some situations. By evaluating the comparator and the system, results show that the use of tree-base comparison is a feasible method. It gives a realistic and accurate comparison result. In addition, the system can relieve the workload of the markers by reducing the time and effort for marking programming assignments. Evaluation has shown that the system is generally useable while some areas of the system are still needed to improve.
There are a number of extensions can be added to this project. One suggestion is that it will be better if it can support multiple files for a question, such that it can call other classes while running test cases. It can also be improved to support more different languages such as C, since the program structure is similar.
From the feedback among the teachers, they find that it is not so convenient while using automatic marking, as they have to write another testing program. So an extension of this project includes automatic generating testing programs in the future.
